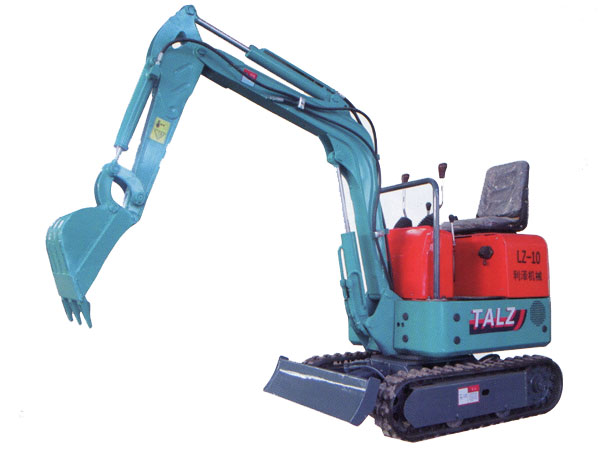

LZ-10 mini excavator
LZ-10 mini excavator Product Features
※ Easy to use
※ Small and exquisite
※ Convenient transportation
※ Low fuel consumption
※ Versatility

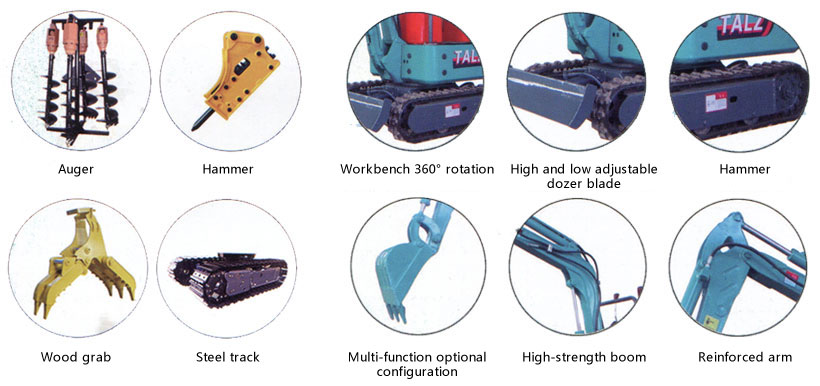

Optional multiple attachments
Operating range | ||
Maximum digging distance | mm | 2728 |
Maximum digging depth | mm | 1510 |
Maximum digging height | mm | 2560 |
Maximum unloading height | mm | 1784 |
Minimum Swing radius | mm | 1219 |
Maximum ground mining distance | mm | 2700 |
Maximum vertical digging depth | mm | 775 |
Parameter | ||
Weight | kg | 980 |
Engine power | kw | 8.6 |
Bucket capacity | m3 | 0.03 |
Rotary speed | rpm | 15 |
Walking speed | km/h | 0-2 |
Climbing ability | ° | <30 |
Dimensions | ||
Width | mm | 920 |
Height | mm | 1560 |
Length | mm | 2950 |
Minimum ground clearance | mm | 115 |
